TUBE BENDING SHOP

We bend tubes and profiles with cold and hot bending machines. We manufacture pressure and non-pressure parts and units. We offer welding automatic and hand welding, machining, heat treatment, sand balsting, metallization and surface treatment.

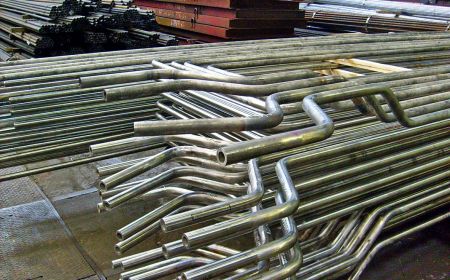

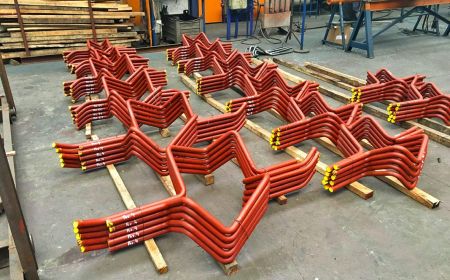

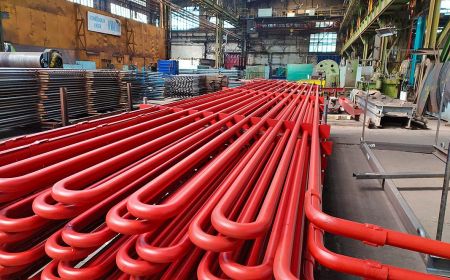

Tube bending

  • Tube systems acc.to ČSN 13 2604, for piping acc.to ČSN 13 1020 and ČSN 13 1030

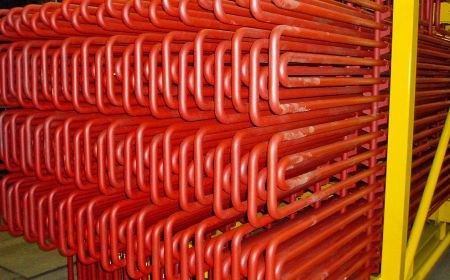

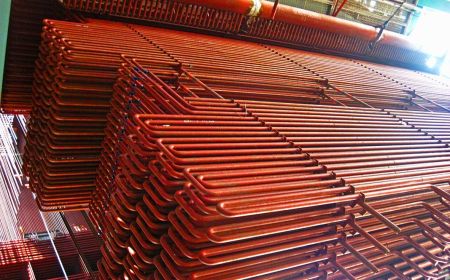

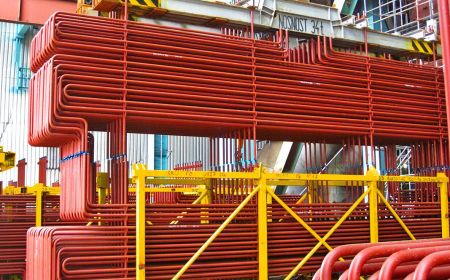

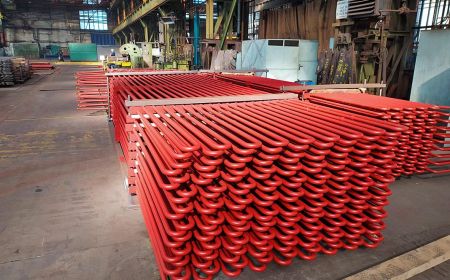

  • Tube heat surfaces for steam boilers ( acc.to former ON 07 0627 a ON 07 0629), acc.to drawing documentation and requirements of the customer
  • Authorization acc.to DIN - AD W0 / TRD 100, ISO 9001, ASME

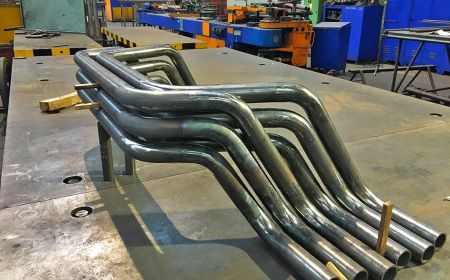

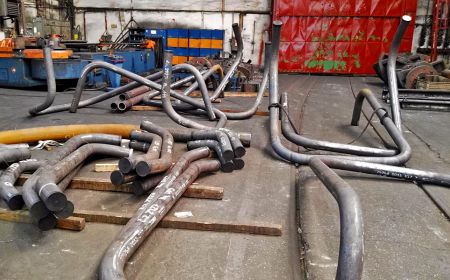

Cold bending - machinery

Technical parameters
min. ø of pipe 12 mm
max. ø of pipe 108 × 4,5 mm
thickness of the wall cross-section of the module in bending Wmax = 33 cm³
min. diameter of bend 40 mm
max. diameter of bend 600 mm
max. angle of bend 180°
distance of straight part between bend 2 × D



Technical parameters
min. ø of pipe 25 mm
max. ø of pipe 63 × 5 mm (pro NC nutno dojednat)
thickness of the wall cross-section of the module in bending Wmax = 12 cm³
min. diameter of bend 1 × D (35 mm)
max. diameter of bend 300 mm
max. angle of bend 210°
min. distance of straight part between bend 80 mm (Smaller distance needs to be discussed)

Technical parameters
min. ø of pipe 108 mm
max. ø of pipe 219 × 10 mm
thickness of the wall cross-section of the module in bending Wmax = 350 cm³
min. diameter of bend 2,5 × D (350 mm)
max. diameter of bend 900 mm
max. angle of bend 180°
min. distance of straight part between bend 2 × D (Smaller distance needs to be discussed)



Technical parameters
min. ø of pipe 21,3 mm
max. ø of pipe 57 × 4 mm
min. diameter of bend 250 mm
max. angle of bend from 0° to 360° with possibility of manufacturing spirals – needs to be discussed
needed allowances on both ends straight part of min. 150 mm
We ensure bending of pipes up to ø 89×5 mm with minimumdiameter of bend R=1000 mm.



Technical parameters
min. ø of pipe 20 mm
max. ø of pipe 63 × 5 mm
thickness of the wall cross-section of the module in bending Wmax = 12,5 cm³
min. diameter of bend 40 mm
max. diameter of bend 200 mm
min. angle of bend 1,2 × D
max. angle of bend 210°
min. distance of straight part between bend 80 mm (Smaller distance needs to be discussed)

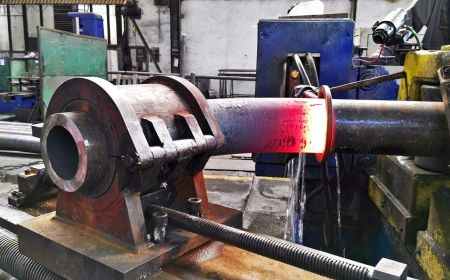

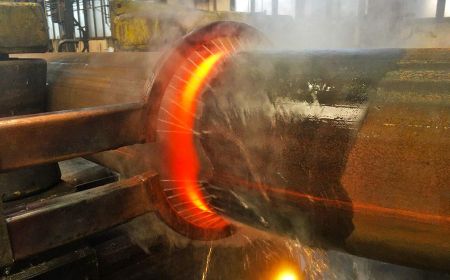

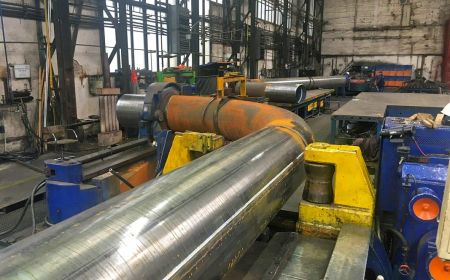

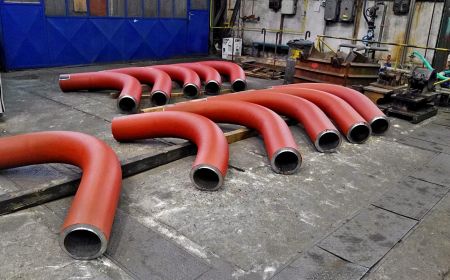

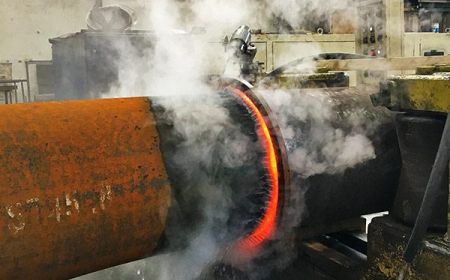

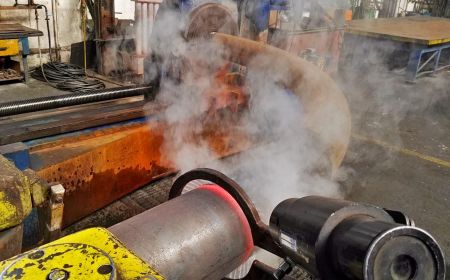

Hot bending - machinery

Technical parameters
min. ø of pipe 89 mm
max. ø of pipe 630 × 4,5 mm
thickness of the wall cross-section of the module in bending Wmax = 4500 cm³ (50 mm)
min. diameter of bend 2,5 × D (600 mm)
diameter of bend in jaws up to 90° 600 - 1000 mm
diameter of bend in jaws up to 180° 1000 - 3250 mm
distance of straight part between bend 450 mm
max. length of arch 4700 mm
max. length of clamped pipe 8000 mm
in additional device from 2,5 × D max. 219 × 10 up to 90°
from 350 up to 600 mm max. 324 × 8 … up to 100 000 mm
The machine has steering and regulatory systems Allen-Bradley with monitoring no touch system of infrared temperature reading from pushed and pulled side with record on computer. For reaching more favourable tolerances of bends, i tis recommended to choose the diameter of bend min 3D. technological allowances of length of pipe ends need to be consulted.



Welding

  • Mechanical - method 141, 142 (Polysoude)
    qualifications of operators acc. to EN ISO 14732, PED 2014//68/EU, AD2000-HP3
  • Hand - methods 141, 111, 135
    qualifications of welders acc.to EN ISO 9606-1, PED 2014/68/EU, AD2000-HP3

Mechanical – automated welding

Technical parameters
min. ø welded pipe cca 10 mm
max. ø welded pipe cca 114 mm
max. thickness of welded pipe cca 12,5 mm
The workplace is equipped with Polysoude P6 and orbital welding heads MU III. and MU IV.



Hand welding

  • • Mechanical equipment: resources and accessories ESAB, EWM, Fronius, Alfa, etc.



Other technological processes

We offer free capacity of machining works, macinery equiment:

  • lathes
  • horizontal drilling machines
  • cutters
  • hand cutters
